PLATE HEAT EXCHANGER TOOLS
PLATE HEAT EXCHANGER CLOSING DONE FAST, EASY, & SAFE!
REDUCES YOUR PLATE HEAT EXCHANGER MAINTANCE LABOR COSTS
"HEAVY DUTY" VERSION - MADE FROM SOLID MACHINED METAL - NOT CAST!
.jpg "image title")
PLATE HEAT EXCHANGER OPENING/CLOSING TOOLS
"HEAVY DUTY" VERSION - MADE FROM SOLID MILLED BILLET : NOT CAST!
MAKES YOUR HARD JOB EASY.....
ELECTRIC POWERED PLATE HEAT EXCHANGER TOOL
PNEUMATIC POWERED PLATE HEAT EXCHANGER TOOL
.jpg "Plate Heat Exchanger tool")
BATTERY POWERED
PLATE HEAT EXCHANGER TOOL
.jpg "image title")
.bmp "image title")
WORLDS ONLY 12.0 AMP HOUR BATTERY TORQUE TOOL
CHOOSE HOW ITS POWERED
- PNEUMATIC POWERED (MAX 24 CFM @ 20-87 PSI)
- ELECTRIC POWERED (9.4 AMPS on 120V) 220V AVAILABLE
- BATTERY POWERED (12.0 AMP HOUR BATTERY)
CHOOSE THE HEX SIZE
- STANDARD TOOL COMES AS 80MM HEX (CAN BE MADE LARGER)
- WE PROVIDE REDUCERS FOR SMALLER SIZES
- WE ALSO HAVE A ULTRA COMPACT 65MM VERSION
PHE TOOL HD FEATURES
- HOUSING IS MACHINED FROM SOLID METAL (NOT CAST!)
- MULTIPLE SPEEDS FOR FAST RUNDOWNS
- THIS MODEL CAN BE PURCHASED IN SIZES ABOVE 80MM
- EXTRA POWER 3500 FT LB VERSION FOR OVER 1000 PLATES
- PNEUMATIC VERSION ONLY USES MINIMAL AIR (24.5 CFM)
- REACTION POINT IS REMOVABLE FOR TIGHT SPACES
- FITS ON EXCHANGERS WITH BOLTS DEEP IN THE END PLATE
- COMES IN TRANSPORT CASE WITH WHEELS
- PNEUMATIC VERSION IS 30% QUIETER, ONLY 74 DECIBELS!
- BATTERY VERSION IS 4 SPEEDS MAKING IT SUPER FAST!
- BATTERY VERSION : 12 AMP HOURS! INCREDIBLE RUN TIMES!
.jpg)
.jpg "image title")
"NEW" OPTIONAL ACCESSORY - FLIP ARM
.jpg "image title")
"FLIP REACTION ARMS" - USE THE TOOL FROM THE FLIP SIDEIF THERE IS AN OBSTRUCTION ABOVE THE NUT
STANDARD 80MM VERSION
.jpg "image title")
AVAILABLE IN FRACTIONAL SIZES TOO!
GUIDE
500/505 IS A "SPECIAL" EXTRA POWER MODEL DESIGNED FOR HI PRESSURE EXCHANGERS ABOVE 150 PSI
355/380/400 IS YOUR "STANDARD" TOOL FOR EXCHANGERS UP TO 1000 PLATES.
SMALLER 65MM VERSION
.jpg "image title")
HEAVY DUTY
ELECTRIC PLATE HEAT EXCHANGER TOOL SPECS
HEAVY DUTY
PNEUMATIC PLATE HEAT EXCHANGER TOOL SPECS
HEAVY DUTY
BATTERY PLATE HEAT EXCHANGER TOOL SPECS
HEAVY DUTY
65MM SMALLER VERSION TOOL SPECS
DROP DOWN HEX REDUCERS
FITS ANY SIZE HEX NUT : METRIC OR IMPERIAL AVAILABLE
EVERY INSERT HAS A LIP, TO HOLD THE INSERT IN PLACE WHILE IN USE
EXTRA TALL HEIGHT - FITS EXTRA TALL HEX NUTS
.jpg "Plate Heat Exchanger socket")
PLATE HEAT EXCHANGER ADAPTERSSTANDARD SIZES IN STOCK AT ALL TIMES 36, 46, 50, 55 51, 60, 65, 70MMADDITIONAL SIZES AVAILABE : METRIC OR FRACTIONIAL/IMPERIAL

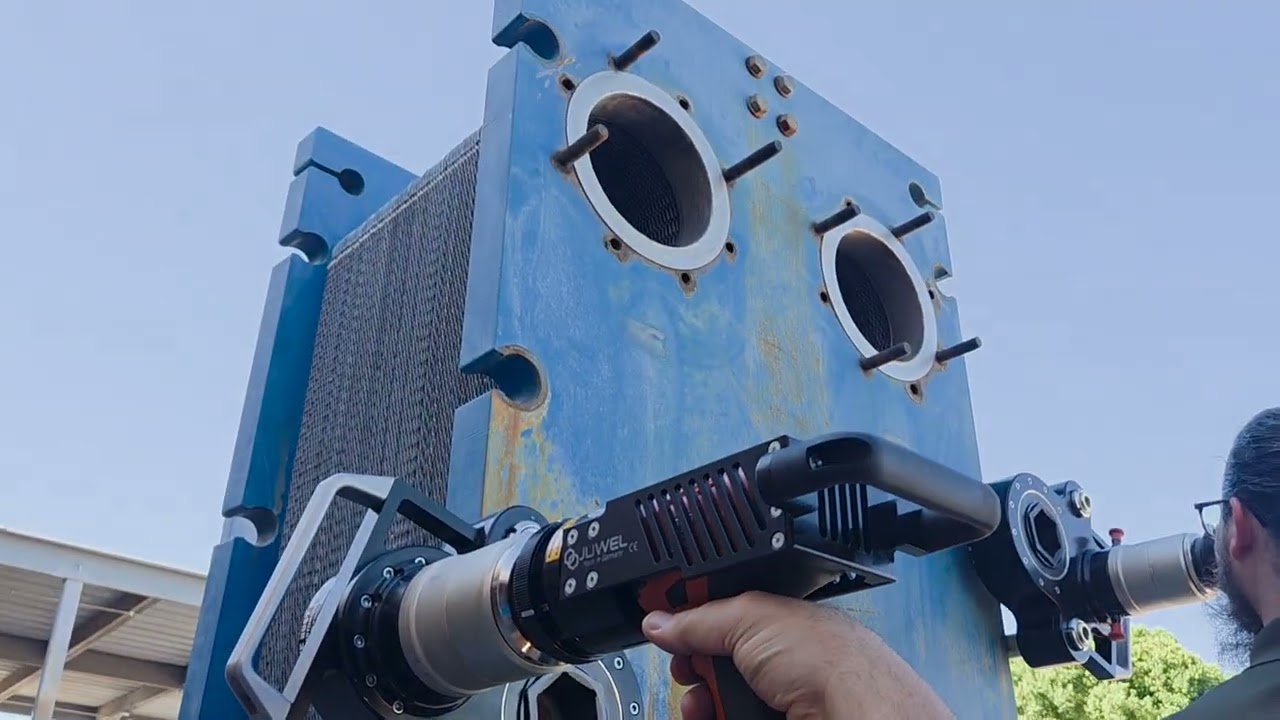

PLATE HEAT EXCHANGER TOOLS IN ACTION
PLATE HEAT EXCHANGER OEM : WORLDWIDE USE!

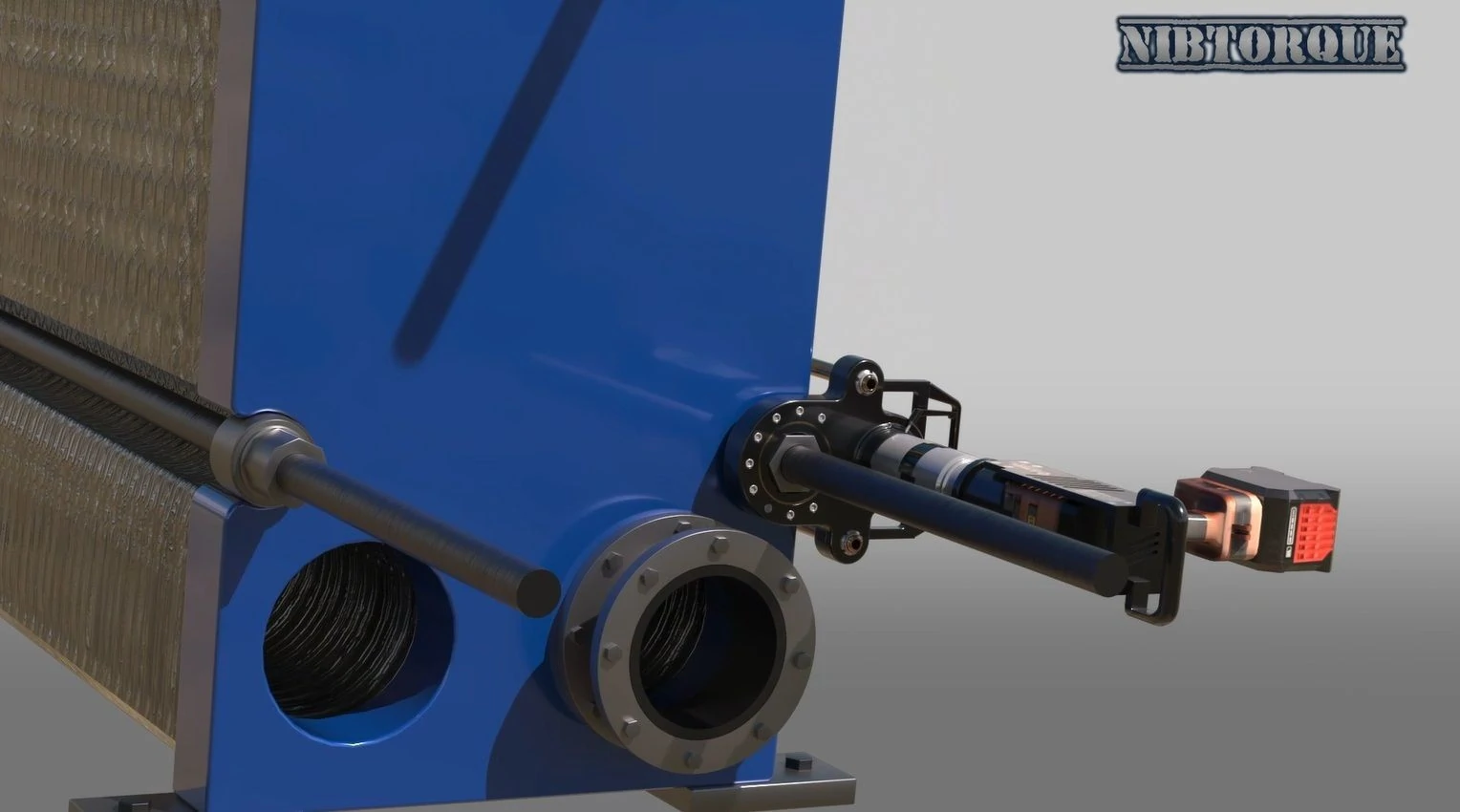

OEM SOLUTION FOR CLOSING PLATE HEAT EXCHANGERS
USING 2 TOOLS TO SQUEEZE THE PLATES EVENLY
GREATLY REDUCES TOOL JOGGING
DECREASES CLOSING TIME
MAKES LIFE EASY
WHAT WOULD TAKE 3 HOURS WITH HYDRAULIC RAMS : ONLY TAKES 45 MIN = WITH OUR 4 SPEED BATTERY PHE TOOL.
THIS IS AT ONE OF THE LARGEST PHE SERVICE CENTERS IN CANADA
.jpeg "image title")
SMALLER 65MM VERSION PHE TOOLIN USE ON A SMALL PLATE HEAT EXCHANGER
WCR EXCHANGER - CLOSING WITH EASE!
TITANIUM PLATES ON A PLATE HEAT EXCHANGER
PLATE HEAT EXCHANGER CLOSING
SQUEEZING PLATES WITH ONE HAND!!
ELECTRIC POWERED PROTYPE PLATE HEAT EXCHANGER TOOL
SQUEEZING PLATES WITH EASE!!!
CLOSING AN EXCANGER IN RECORD TIME : AT THE LARGEST PLATE HEAT EXCHANGER SERVICE CENTER IN CANADA.
12 AMP HOUR BATTERY TOOL BRING YOUR OWN POWER!
.jpg "image title")
TOOLS SEPARATES IN 2 PIECES FOR COMPACT TRANSPORT
65MM SMALLER VERSION SHOWN
HD PLATE HEAT EXCHANGER TOOL CLOSING A STUBBORN PLATE HEAT EXCHANGER THAT HYDRAULIC CYLINDERS HAVE A HARD TIME COMPRESSING. WE DID IT WITH EASE!
PLATE HEAT EXCHANGER TOOL CASES
CASE WITH WHEELS FOR EASY TRANSPORT
CASES COME WITH HARD FOAM LASER CUT INSERTS!
PNEUMATIC PLATE HEAT EXCHANGER TOOL SYSTEM WITH INCLUDED
STAINLESS STEEL HOLDER FOR OUR 3 PIECE FILTER, REGULATOR, LUBRICATOR,
WATER TRAP UNIT AND 10 FT EZ-COIL HOSE & ALL NECEESSARY AIR FITTINGS
ELECTRIC PLATE HEAT EXCHANGER TOOL READY FOR WORK!
2 SPEEDS 100 SETTINGS, SIMPLE YET BULLETPROOF DESIGN!
AVAILABLE IN 110V or 220V
PLATE HEAT EXCHANGER TOOL "RENTAL" UNITS
ARE YOU CURRENTLY STANDING IN FRONT OF A PLATE HEAT EXCHANGER THAT IS A STRUGGLE TO CLOSE?
NEED A TOOL SAME DAY? / NEXT DAY? / NEED TO RENT FOR A - "ONE-TIME" JOB?
PHE RENTAL TOOL NO 1
SUPER HEAVY DUTY VERSION
.jpg "Rental plate heat exchanger tool")
PHE RENTAL TOOL NO 2SUPER HEAVY DUTY VERSION
PHE RENTAL TOOL NO 3SUPER HEAVY DUTY VERSION
PHE RENTAL TOOL NO 4SUPER HEAVY DUTY VERSION
WE HAVE PLATE HEAT EXCHANGER RENTAL TOOLS IN STOCK - READY TO DISPATCH!
.jpg "Plate Heat Exchanger Bolting tool")
RENTAL TOOL NO. 5
HEAVY DUTY PHE TOOL
"SUPER-COMPACT"
RENTAL TOOL NO. 6
LIGHT DUTY PHE TOOL
PHE RENTAL TOOL NO 7LIGHT DUTY PHE TOOL
.jpeg "image title")
PHE RENTAL TOOL NO 8HEAVY DUTY PHE TOOL
"SUPER-COMPACT"
