FIELD TEST BENCH
MADE IN THE USA
TAKE A TRANSDUCER WITH YOU IN THE FIELD
ASSURED YOUR TOOLS ARE IN CALIBRATION ON A DAILY BASES
.jpg)

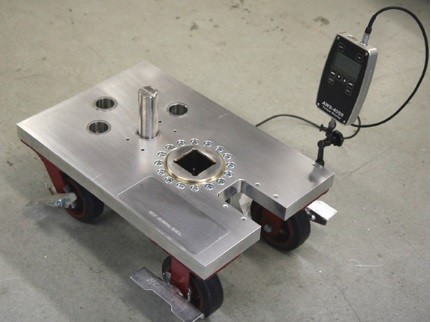

ABOVE : STANDARD MODEL (STATIC TRANSDUCER)
FOR CALIBRATING HYDRAULIC TORQUE WRENCHES
ABOVE : RUN DOWN FIXTURE INSTALLED
FOR TESTING CONTINIOUS ROTATION TOOLS
TWO DIFFERENT MODELS
- CHOOSE FROM A STATIC TRANSDUCER FOR HYDRAULIC RATCHETING TOOLS
- CHOOSE FROM A DYNAMIC TRANSDUCER FOR CONTINIOUS ROTATION TOOLS LIKE : PNEUMATIC, ELECTRIC, OR BATTERY TORQUE
FEATURES:
- Made From Solid Aluminum for Portability
- Hand Held Readout or Integrated Readout
- Steel Reaction Post
- Machined In Handle
- Optional Pelican Case
- Digital Display +/-0.5 Accuracy
- Built in Transducer to Measure Torque
- Optional Casters Available
MODELS AND DIMS
PORTABLE CAPACITY:
- MAX 1000 FT LBS, 8x8x14 IN"
- MAX 2500 FT LBS, 12x12x14 IN"
- MAX 5000 FT LBS, 12x12x12 IN"
- MAX 7500 FT LBS, 12x12x12 IN"
- MAX 25000 FT LBS, 18x24x14 IN"
LARGE CAPACITY:
- MAX 10000 FT LBS, 18x24x14 IN"
- MAX 25000 FT LBS, 18x24x14 IN"
- MAX 50000 FT LBS, 18x24x14 IN"
SHOW ABOVE :
OPTIONAL DUAL LARGE MODEL WITH 2 TRANSDUCERS
